Class 150~1500 Forged Steel Bolt Gate Valve
Class 150~1500 Forged Steel Bolt Gate Valve
Product Description

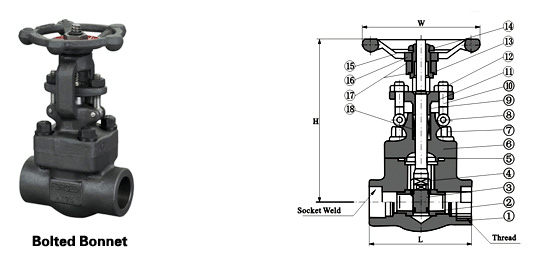

Class 150~1500 Bolt gate valve

Standard Material Specifications (CLASS 150Lb~800Lb)
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat Ring A276 420 A276 04 A276 304(L) A276 316(L)
3 Wedge A276 430&410 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
5 Gasket Corrugated SS+graphite SS+PTFE
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
8 Pin A276 420 A182 F304
9 Gland A276 410 A182 F304(L) A182 F316(L)
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A105 A182 F11 A182 F304(L) A182 F316(L)
12 Gland Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 420
14 H.W. Lock Nut A194 2H A194 4 A194 8 A194 M
15 Nameplate SS
16 Hand wheel A197
17 Bearing Gasket A473 431
18 Stem Packing Flexible Graphite PTFE
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH2OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Note: Other materials are available upon request



Dimensions(mm) And Weights(kg)
NPS (in) Reduced 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 79 79 92 111 120 120 140 178
H(OPEN) 158 158 169 197 236 246 283 330
W 100 100 100 125 160 160 180 200
Weights Bolted 2.1 2.0 2.3 4.3 5.9 6.9 11.1 15.2
Welded 1.8 1.7 2.0 3.8 5.1 6.1 10.2 14.2

Standard Material Specifications (CLASS 900Lb~1500Lb)
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat Ring A276 420 A276 304 A276 304(L) A276 316(L)
3 Wedge A276 430&410 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
5 Gasket Corrugated SS+graphite SS+PTFE
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
8 Pin A276 420 A276 304
9 Gland A276 410 A182 F304(L) A182 F316(L)
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A105 A182 F11 A182 F304(L) A182 F316(L)
12 Gland Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 420
14 H.W. Lock Nut A194 2H A194 4 A194 8 A194 8M
15 Nameplate SS
16 Hand wheel A197
17 Bearing Gasket A473 431
18 Stem Packing Flexible Graphite PTFE
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Dimensions(mm) And Weights(kg)
NPS (in) Reduced. 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 92 111 111 120 120 140 178 210
H(OPRN) 169 197 197 236 246 283 330 354
W 100 125 125 160 160 180 200 240
Weights Bolted 2.5 4.3 4.2 6.6 8.8 12.5 17.2 23.5
Welded 2.4 4.2 4.0 6.3 8.7 12.1 17.2 22.0
