PN63~160 DIN Rising Stem Gate Valve F7 Series
PN63~160 DIN Rising Stem Gate Valve F7 Series
Product Description


PN63~160, DN40~600
Design and manufacture: DIN3352
Face to face: DIN3202-F7, EN558-1
End flange Dimensions: DIN2546(PN63), DIN2547(PN100), DIN2548(PN160), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.

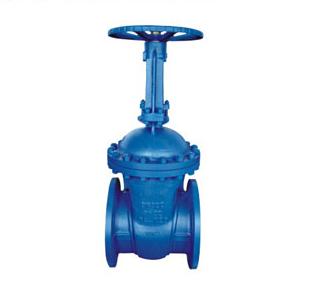

PN63~160 DIN Rising Stem gate valve F7


Standard Material Specifications

NO.

Part Name

Material

NO.

Part Name

Material

1

Body

GS-C25+13Cr

11

Nut

A194 2H

2

Wedge

GS-C25+13Cr

12

Gland

GS-C25

3

Stem

A182 F6

13

Yoke

GS-C25

4

Nut

A194 2H

14

Bearings

Alloy Steel

5

Bolt

A193 B7

15

Nipple

Brass

6

Gasket

Graphite

16

Stem Nut

A439 D2

7

Bonnet

GS-C25

17

Retaining Nut

Carbon Steel

8

Packing

Graphite

18

Handwheel

A536

9

Pin

Carbon Steel

19

Nut

Carbon Steel

10

Gland Eyebolt

A193 B7

20

Grub Screw

Carbon Steel


Dimensions(mm)

PN63

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

240

250

290

310

350

400

450

550

650

750

850

950

1150

1350

H

385

440

480

525

625

740

810

1045

1260

1490

1630

1840

2260

2720

W

180

200

220

250

280

400

450

500

500

600

650

700

800

900


PN100

DN

50

65

80

100

125

150

200

250

300

350

400

L

250

290

310

350

400

450

550

650

750

850

950

H

460

500

550

660

765

850

1090

1310

1550

1710

1920

W

220

250

280

300

400

450

500

550

600

650

700


PN160

DN

50

65

80

100

125

150

200

L

250

290

310

350

400

450

550

H

460

500

550

660

765

850

1090

W

220

250

280

300

400

450

500
