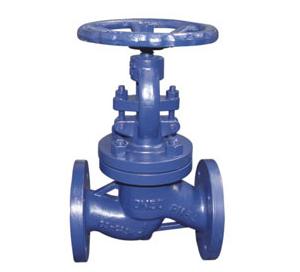

PN40 DIN Globe Stop Valve F1 Series
PN40 DIN Globe Stop Valve F1 Series
Product Description


PN40 DIN Globe Stop Valve F1 Series

PN40, DN15~150
Design and manufacture: DIN3356
Face to face: DIN3202-F1, EN558-1
End flange Dimensions: DIN2545, EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.






Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

GS-C25+13Cr

9

Packing

Graphite

2

Disc

A105+13Cr

10

Pin

Carbon Steel

3

Stem

A182 F6

11

Bolt

A193 B7

4

Spring

1065

12

Gland

GS-C25

5

Bolt

A193 B7

13

Nut

A194 2H

6

Nut

A194 2H

14

Stem Nut

Bronze

7

Gasket

Graphite

15

Handwheel

A105

8

Bonnet

GS-C25

16

Nut

A194 2H


Dimensions(mm)

PN40

DN

15

20

25

32

40

50

65

80

100

125

150

L

130

150

160

180

200

230

290

310

350

400

480

H

210

230

250

275

300

325

385

410

455

510

560

W

120

120

140

160

180

200

220

250

300

350

400
