Class 900~2500 Flanged End Pressure-Seal Globe Valve
Class 900~2500 Flanged End Pressure-Seal Globe Valve
Product Description

Class 900~2500 Flanged End Pressure-Seal globe valve

Standard Material Specifications
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type A182 F22 Type F34(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Stem A182 F6 A182 f304 A182 F304(L) A182 F316(L)
4 Pressure Seat A105 A182 F304 A182 F304(L) A182 F316(L)
5 Pressure Ring A182 F304(L) F316L
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
7 Pin A276 420 A276 304
8 P.S. Washer A105 A182 F22 A182 F304(L) A182 F316(L)
9 P.S. Lock Nut A194 2H A194 4 A194 8 A194 8M
10 Stem Packing Flexible Graphite PTFE
11 Gland A276 420 A182 F304
12 Gland Flange A216 WCB A351 CF8
13 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
14 Gland Nut A194 2H A194 4 A194 8 A194 8M
15 Yoke Nut A276 410
16 Hand wheel A197
17 Nameplate SS
18 H.W. Nut A194 2H A194 4 A194 8 A194 8M
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Note: Other materials are available upon request.

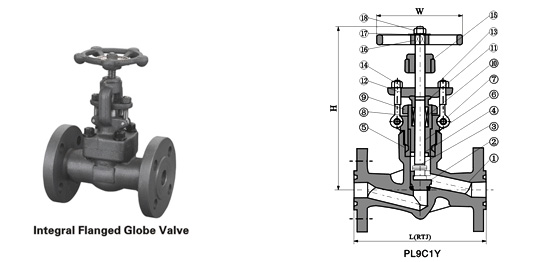

Dimensions(mm) And Weights(kg)
NPS (in) 1/2 3/4 1 1-1/4 1-1/2 2
L(RTJ) 900Lb~1500Lb 216 229 254 279 305 368
2500Lb 264 273 308 349 384 451
H(OPEN) 900Lb~1500Lb 318 318 318 398 408 524
2500Lb 333 333 333 410 420 524
W 160 160 180 200 250 280
Weights 900Lb~1500Lb 15.5 16.9 18.9 28.9 34.3 52.8
2500Lb 18.0 20.5 23.0 36.1 45.0 81.5
Related Products
