PN64 DIN Globe Valve F2 Series
PN64 DIN Globe Valve F2 Series
Product Description

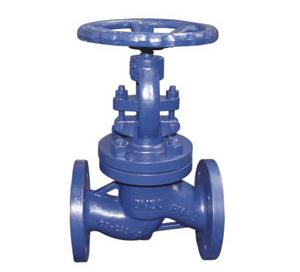

PN64 DIN globe valve F2 Series

PN64, DN15~150
Design and manufacture: DIN3356
Face to face: DIN3202-F2, EN558-1
End flange Dimensions: DIN2546, EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.





Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

GS-C25+13Cr

9

Packing

Graphite

2

Disc

A105+13Cr

10

Pin

Carbon Steel

3

Stem

A182 F6

11

Bolt

A193 B7

4

Disc Nut

A105

12

Gland

GS-C25

5

Bolt

A193 B7

13

Nut

A194 2H

6

Nut

A194 2H

14

Stem Nut

Bronze

7

Gasket

Graphite

15

Handwheel

A105

8

Bonnet

GS-C25

16

Nut

A194 2H


Dimensions(mm) and Weights (kg)

PN64

DN

15

20

25

32

40

50

65

80

100

125

150

L

210

230

230

260

260

300

340

380

430

500

550

H

210

230

250

275

300

325

385

410

455

510

560

W

120

120

140

160

180

200

220

250

300

350

400

Weight(kg)

8

10

12

16

17

26

33

42

60

85

110
