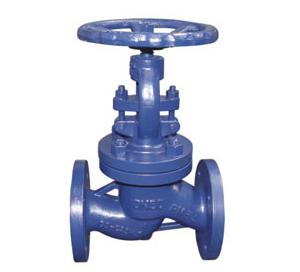

PN16~40 DIN Globe Valve F1 Series DN15~DN150
PN16~40 DIN Globe Valve F1 Series DN15~DN150
Product Description


PN16~40 DIN globe valve F1 Series

PN16~40
Size: NPS DN15~150
Design and Manufacture: DIN3356
Face to Face: DIN3202-F1, EN558-1
End Flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure Test: DIN3230, EN12266-1

Main structural features:
1. This product has logical structure, reliable seal, excellent performance and nice design.
2. The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
3. The stem quenched and tempered, and its surface is treated by nitriding treatment, thus it has good corrosion resistant and friction resistant.




Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

GS-C25+13Cr

9

Packing

Graphite

2

Disc

A105+13Cr

10

Pin

Carbon Steel

3

Stem

A182 F6

11

Bolt

A193 B7

4

Disc Nut

A105

12

Gland

GS-C25

5

Bolt

A193 B7

13

Nut

A194 2H

6

Nut

A194 2H

14

Stem Nut

Bronze

7

Gasket

Graphite

15

Handwheel

A105

8

Bonnet

GS-C25

16

Nut

A194 2H

The part material, flange and butt weld end dimension may be selected according to current operating condition and users'
requirement, so that meeting the requirements of various engineering.

Dimensions(mm)

PN16        PN25       PN40

DN

15

20

25

32

40

50

65

80

100

125

150

L

130

150

160

180

200

230

290

310

350

400

480

H

210

230

250

275

300

325

385

410

455

510

560

W

PN16

120

120

140

160

180

200

220

250

300

350

400

PN25

120

120

160

160

200

200

220

250

300

350

400

PN40

120

120

160

160

200

240

280

320

360

400

450

Weight(kg)

PN16

5.5

7.5

8

8.6

13

20

25

35

50

75

100

PN25

6

7.5

8

9

14

22

27

38

55

82

105

PN40

6

7.5

8

9

15

24

30

41

60

85

110
